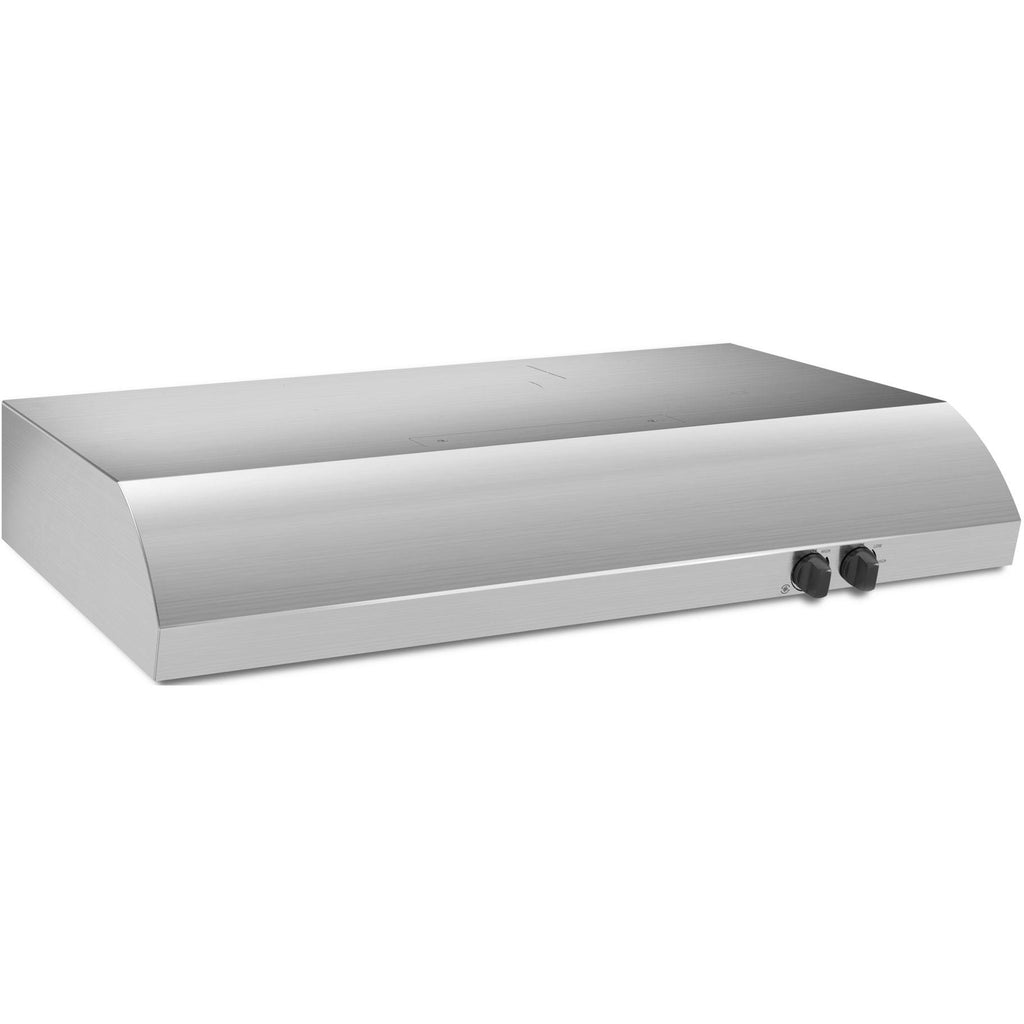

Whirlpool 30-inch Under-Cabinet Range Hood UXT4230ADS IMAGE 1

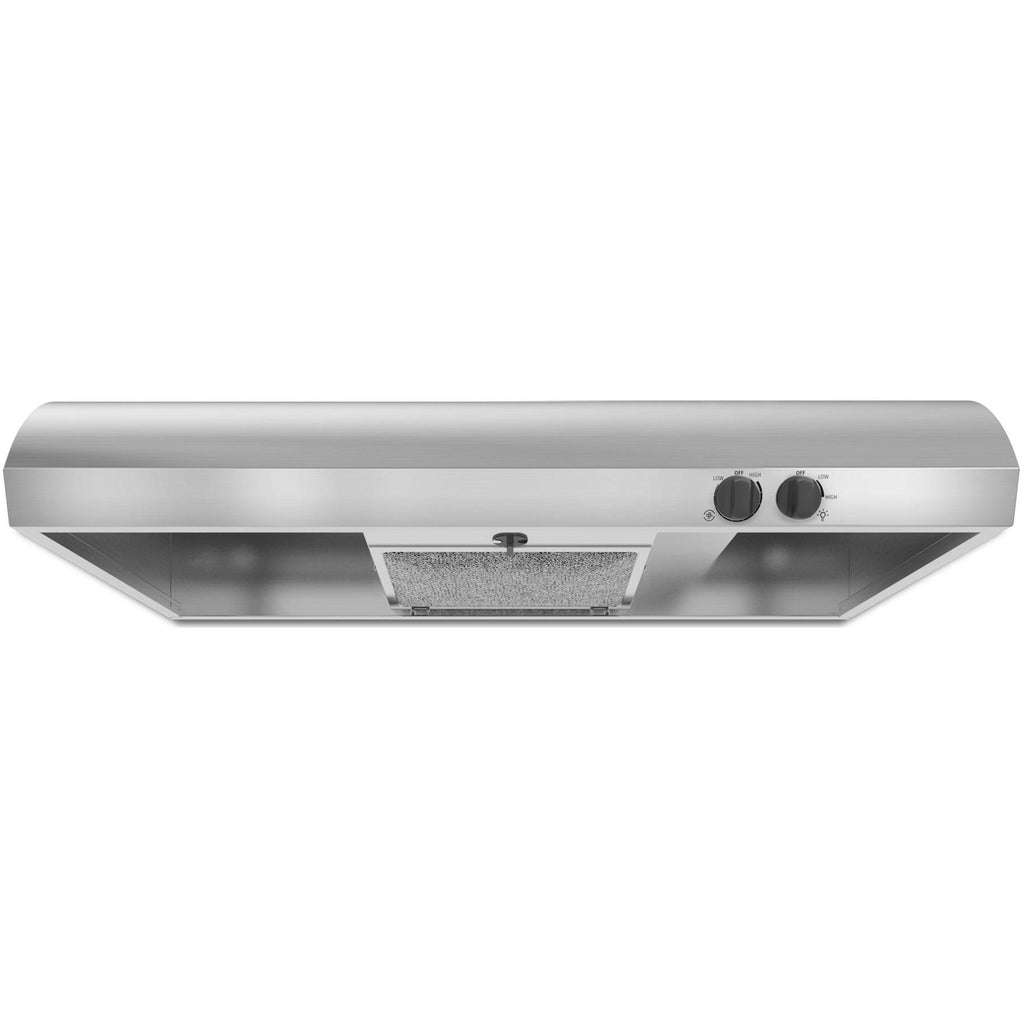

Whirlpool 30-inch Under-Cabinet Range Hood UXT4230ADS IMAGE 2

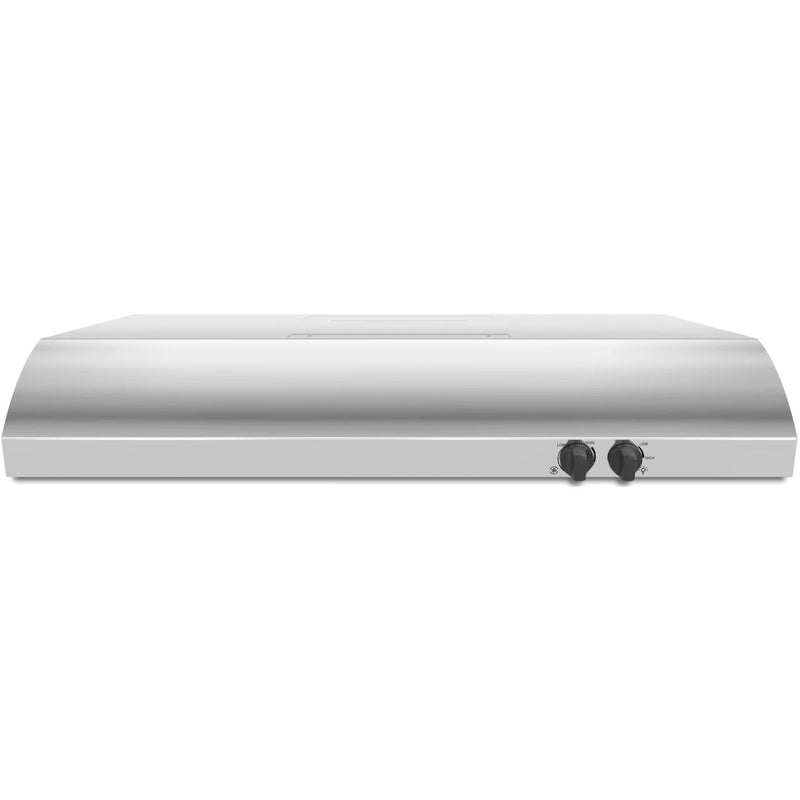

Whirlpool 30-inch Under-Cabinet Range Hood UXT4230ADS IMAGE 3
Roll over image to zoom in Click on image to zoom

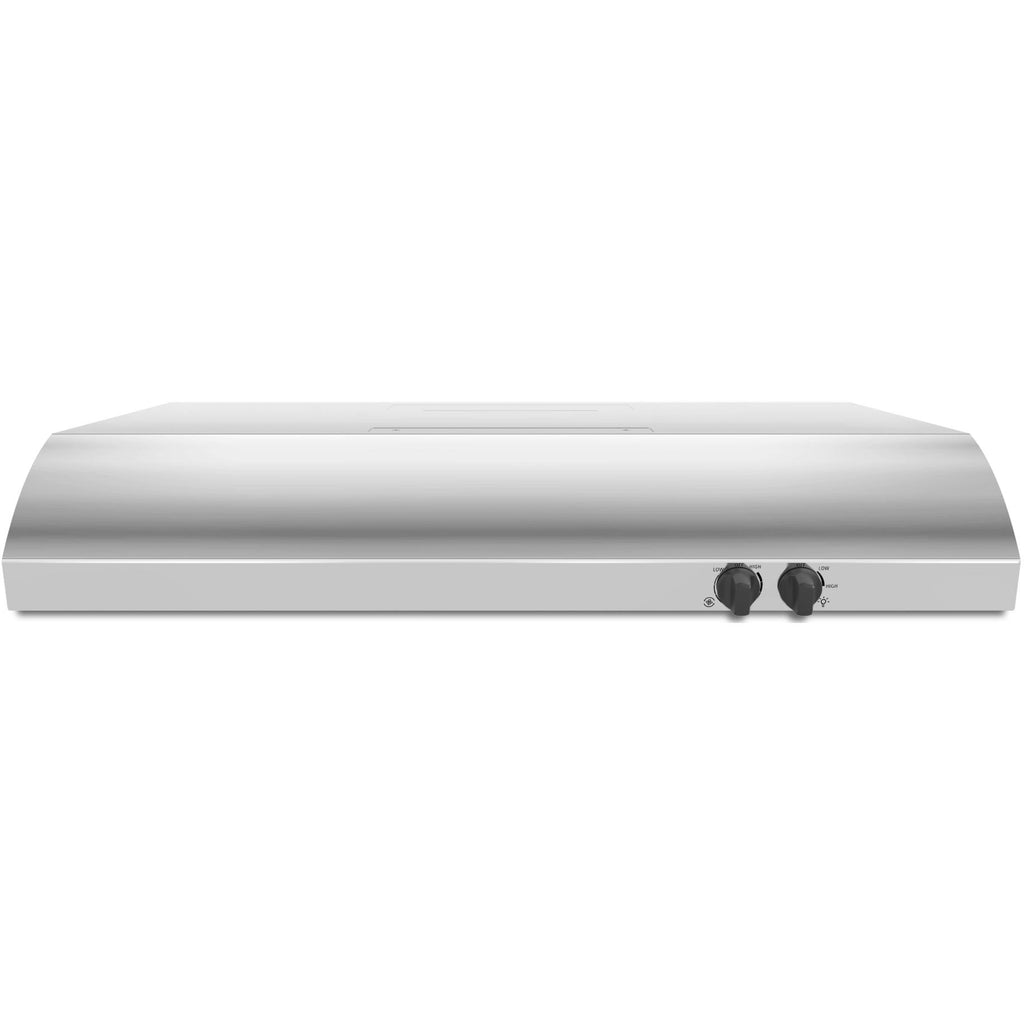

Whirlpool 30-inch Under-Cabinet Range Hood UXT4230ADS IMAGE 1
Whirlpool 30-inch Under-Cabinet Range Hood UXT4230ADS IMAGE 2
Whirlpool 30-inch Under-Cabinet Range Hood UXT4230ADS IMAGE 3
Whirlpool 30-inch Under-Cabinet Range Hood UXT4230ADS EXTERNAL_VIDEO 1

Whirlpool 30-inch Under-Cabinet Range Hood UXT4230ADS

WhirlpoolSKU: UXT4230ADS
Installing this stove hood is quick and easy. The FIT system eliminates measuring, cutting and filler strips for a smooth... Installing this stove hood is quick and easy. The FIT system eliminates measuring, cutting and filler strips for a smooth fit every time. Once installed, the hood vent kitchen fan operates at a quiet 58 dBA (3.0 sones) at working speed so it won't disturb family time in the kitchen. Plus, incandescent lighting helps you keep a close eye on food so each dish turns out the way you want it to. And when cooking introduces steam, grease, smoke or odors into the surrounding air, a 225 CFM motor class takes care of it. View more
Features Specifications Documents
Features
FIT SYSTEM
The FIT system eliminates measuring, cutting and filler strips for a perfect fit every time. The FIT system ensures your hood will install seamlessly into your cabinet cutout in three easy steps.
HIDDEN VENT
This sleek and stylish hidden vent matches almost every modern or traditional kitchen. The design moves the ventilation out of sight to create a seamless look and a surface that's super easy to clean.
INCANDESCENT LIGHTING
Incandescent bulb provide bright cooktop lighting to make preparation easy.
POWERFUL VARIABLE-SPEED,225 CFM FAN
Cooking introduces steam, grease, smoke and odors into the surrounding air. With a powerful variable speed 225 CFM fan, this hood is a perfect match for a midsize cooktop and some high-heat cooking methods.
DISHWASHER SAFE GREASE FILTER
Wash metal filter as needed in dishwasher or hot detergent solution.
Specifications
General
Blower Included
Yes
Airflow
225 CFM
Style
Standard
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Under-Cabinet
Features
Dishwasher-Proof Filters
Yes
Ducting Information
Rectangular
Speeds
2
Additional Information
• Convertible to re-circulating
• Rocker switch
• 75 Watt bulb not included
• Fit installation
Electrical Information
Information
• 120 V
• 60 Hz
Dimensions
Class Width
30"
Width
29.94 inch(es) / 76.04 cm
Height
4.94 inch(es) / 12.54 cm
Depth
18.63 inch(es) / 47.31 cm
Weight
14 lb(s) / 6.35 kg
Additional Dimensions
• 18" (45.7 cm) minimum distance from electric cooking surface
• 24" (61.0 cm) minimum distance from gas cooking surface
• 30" (76.2 cm) suggested maximum above the cooking surface
• 18" (45.7 cm) minimum clearance - upper cabinet to countertop
• 12" (30.5 cm) cabinet depth
• 36" (91.4 cm) base cabinet height
Shipping Dimensions
Width
31.75 inch(es) / 80.65 cm
Height
21.13 inch(es) / 53.66 cm
Depth
7 inch(es) / 17.78 cm
Weight
17 lb(s) / 7.71 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
Documents
Installation Guide
Warranty Details
